Testing JSON, Avro, and Parquet needs a flexible connector, and ETL Validator handles this via Apache Drill instead of building native connectors for each format. This post covers installing Drill, starting the server, enabling MongoDB storage, and setting up a “Mongo through Drill” connection in ETL Validator, with sample queries for nested JSON fields. Once connected, standard test plans like Query Compare run directly against MongoDB.
Key Takeaways
- Apache Drill is ETL Validator’s interface to non-native formats (JSON, Avro, Parquet) instead of building separate connectors.
- Setup starts the Drill server locally via
sqlline -u jdbc:drill:zk=local, then enables MongoDB storage atlocalhost:8047. - A “Mongo through Drill” connection needs host, port, and a Mongo-retrieved schema.
- Standard test plans work as usual — Query Compare and others run directly against MongoDB, including nested JSON fields.
Over the last few years, we have been working with a number of customers across various industries such as Life Sciences, Financial Services, Higher Education etc. While the problems related to data testing are similar across industries and JSON and flat files are very common, there are many differences in the file formats. In few industries, Avro is popular while in others, based on use case, Parquet is more commonly used.
At Datagaps, one of the key challenges is our ability to empower customers to test any of the formats with ease. Of course, we have an option to build native connections for each format but that may not be the best option sometimes. At Datagaps, we try to leverage open standards, open source frameworks to support our customers. This is where Apache Drill comes into play.
Over the last 6 months, we have been drilling around a bit and absolutely love the speed and flexibility that Apache Drill provides. As of version 3.4.5, we use Drill as the interface between ETL Validator and any of the file formats mentioned above (except flat files since flat files are much more common and deserve native connectors). In this blog, I wanted to take few minutes and explain how easy it is for you to get started with Drill and integrate with ETL Validator.
Assumptions
1. You are running this proof of concept on Windows.
2. You have ETL Validator Complete 3.4.5 or higher installed on the machine.
3. You have Mongo running on the same machine.
Apache Drill Installation
Step 1: Go to Apache Drill and the get the latest version of Drill. In this blog, we assume version 1.9 of Drill.
Step 2: Using 7z or a similar tool, un-archive the file.
Step 3: Navigate to the bin folder of Apache Drill and then execute the following command “sqlline -u jdbc:drill:zk=local”. This will start the Apache Drill server and now you are ready to define your Mongo database. Once Drill is started successfully, you should see something like this:
Step 4: Launch the web interface to Drill using https://localhost:8047. This interface should be available once the command in step # 3 is run successfully and should look like this:

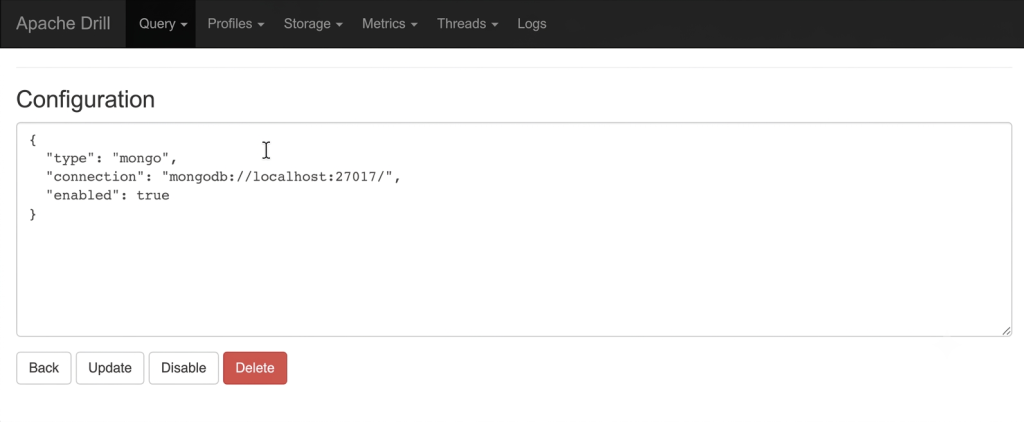

Step 5: Navigate to “Storage” tab and enable the Mongo storage in Apache Drill. Since Mongo is running on the same machine, you do not have to make any changes. Your Mongo setting should look like this:
Setting up Mongo connection in ETL Validator using Drill
Step 1: Launch ETL Validator

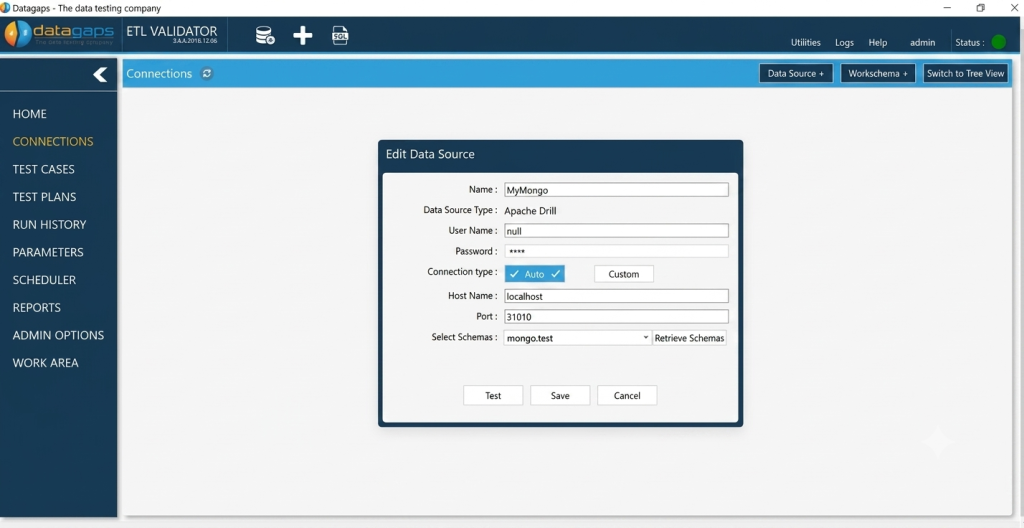

Step 2: Create a new “Mongo through Drill” Connection.
- Name: Can be anything you want.
- User Name & Password: You can put null/null if there is no username/password. This is a know issue and will be fixed in upcoming versions.
- Connection Type: Leave it as Auto
- Host Name: You can provide localhost.
- Port: Leave the default port on which Drill must be running.
- Retrieve and select a schema from Mongo.
Step 3: Test the Connection.
Now, you are ready to execute Query Comparison or other test plans in ETL Validator. Few sample queries are below. Depending on the complexity of the JSON structure, you may need more time to understand how to get the right query.
- SELECT * from mongo.test.`addresses`;
- SELECT ad.address.building FROM mongo.test.addresses as ad
- SELECT ad.address.coord FROM mongo.test.addresses as ad
The above queries assume that the JSON is as follows and these documents are in the mongo.test schema.
{“address”: {“building”: “1007”, “coord”: [-73.856077, 40.848447], “street”: “Morris Park Ave”, “zipcode”: “10462”}, “borough”: “Bronx”, “cuisine”: “Bakery”, “grades”: [{“date”: {“$date”: 1393804800000}, “grade”: “A”, “score”: 2}, {“date”: {“$date”: 1378857600000}, “grade”: “A”, “score”: 6}, {“date”: {“$date”: 1358985600000}, “grade”: “A”, “score”: 10}, {“date”: {“$date”: 1322006400000}, “grade”: “A”, “score”: 9}, {“date”: {“$date”: 1299715200000}, “grade”: “B”, “score”: 14}], “name”: “Morris Park Bake Shop”, “restaurant_id”: “30075445”}
{“address”: {“building”: “469”, “coord”: [-73.961704, 40.662942], “street”: “Flatbush Avenue”, “zipcode”: “11225”}, “borough”: “Brooklyn”, “cuisine”: “Hamburgers”, “grades”: [{“date”: {“$date”: 1419897600000}, “grade”: “A”, “score”: 8}, {“date”: {“$date”: 1404172800000}, “grade”: “B”, “score”: 23}, {“date”: {“$date”: 1367280000000}, “grade”: “A”, “score”: 12}, {“date”: {“$date”: 1336435200000}, “grade”: “A”, “score”: 12}], “name”: “Wendy’S”, “restaurant_id”: “30112340”}
In the next blog, we will show you an example of comparing JSON data with table data using the Query Compare Test Plan. Stay tuned.
Frequently Asked Questions: Apache Drill and MongoDB Connectivity in ETL Validator
1) Why Drill instead of native connectors?
Building a native connector per format isn’t practical — Drill provides a consistent open-source query layer instead.
2) How do you start Drill for ETL Validator?
Run sqlline -u jdbc:drill:zk=local, then confirm via localhost:8047.
3) How do you connect ETL Validator to MongoDB via Drill?
Create a “Mongo through Drill” connection with host, port, and Mongo schema, then test it.
4) Can you query nested JSON fields this way?
Yes — e.g. SELECT ad.address.building FROM mongo.test.addresses as ad.
